Your current location:Home > Products&Technology
Products

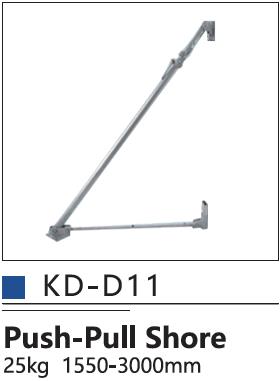

 Scaffold Formworks >> Push-Pull Shore
Product Specifications Shoring Prop:

· Common height range(closed-extended): 1.6 -2.9m ; 1.7 -3.0m ; 1.8-3.2m ; 2.0-3.6m ;  2.2-4.0m ; 2.4-3.9m ; 2.5-4.5m ; 2.6-5.0m ; 3.0-5.0m ; 3.2-6.0m

· Diameter range on tube ( inner /outer): 40/48mm ; 48/57mm ; 48/60mm

· Thickness range on tube: 1.6mm; 1.85mm; 2.0mm; 2.5mm; 3.0mm

· Type: Heavy duty scaffolding prop/light duty scaffolding prop

· Surface finish: Dip Painted, pre-galvanized, hot dip galvanized

· We can provide all kinds of scaffolding props with high quality at low price

· Material: Q235 for welded pipe and 20# for seamless pipe

· Produced in our own factory,can control the quality much better

· Samples are available

· ISO 9001-2000 approved.

· Performance:good bearing capacity,durable & stable

· Test: Our factory self-inspection, SGS, BV or as per your request

· OEM service is available.



Scaffolding tripod Advantage:



     1.---Scaffolding tripod is made of Q235 steel which is strong and reliable for building construction.

    2.---Scaffolding shoring tripod can be painted or hot dip galvanized to resist rustiness.

    3.---Scaffolding prop tripod can be used to support shoring prop to be more steady for concrete supporting.

   4.---Shoring scaffolding tripod can be closed after using ,then you can save space.













Heavy Duty Scaffolding Shoring Props

Min Length (M)

Max Length (M)

Inner Tube (MM)

Outer Tube (MM)

1.8

3.2

48x2.0

60x2.0

2.1

3.4

48x2.0

60x2.0

2.2

4.0

48x2.0

60x2.0

2.4

3.9

48x2.0

60x2.0

3.5

4.0

48x2.0

60x2.0

3.0

5.0

48x3.5

60x3.5



Light Duty Scaffolding Shoring Props

Min Length (M)

Max Length (M)

Inner Tube (MM)

Outer Tube (MM)

1.6

3.0



40x1.5/2.0

48x21.5/2.0

48x2.0

57x2.0

1.8

3.5

40x2.0

48x2.0

48x2.0

57x2.0

2.0

3.5

40x2.0

48x2.0

40x2.0

57x2.0



Features
1: Good quality
2: Lower price
3: Best service,
4: Experienced technical support.
5; Good quality and easy installation.
6: Standard package and timely delivery



Packaging & Delivery
Package: Woven bags with pallets / pallet, carton box, as your request.
Delivery: Within 30 days after confirmationpallet, carton, as your request.



Production equipment
We have full set of production equipment, including automatic welding machine, powder coating machine, punching machine, rolling machine, sand blasting and etc.



Research & development

Our factory have our own R&D person and moulding workshop, we can design and produce according to the customer’s requirements.


Quality control
Our factory uses state-of-the-art facilities to ensure products meet the standards BS1139 and EN74 in the America and European countries, and we will sample check the products before delivery by our quality department.



Main Business
Frame Scaffold
Shoring and Formworks
Scaffold Accessories
Scaffold Couplers
Ringlock and Cuplock Scaffolding

Screw Jack Base and Wheels
